Solid Carbide Tools
Carbide Flat End Mills
Solid Carbide Flat End Mill 3X
Rohit Cutting Tools - 311-2-Flute-HP-ALU-Solid Carbide High Helix End Mills-Metric
311-2-Flute-HP-ALU-Solid Carbide High Helix End Mills-Metric
Description

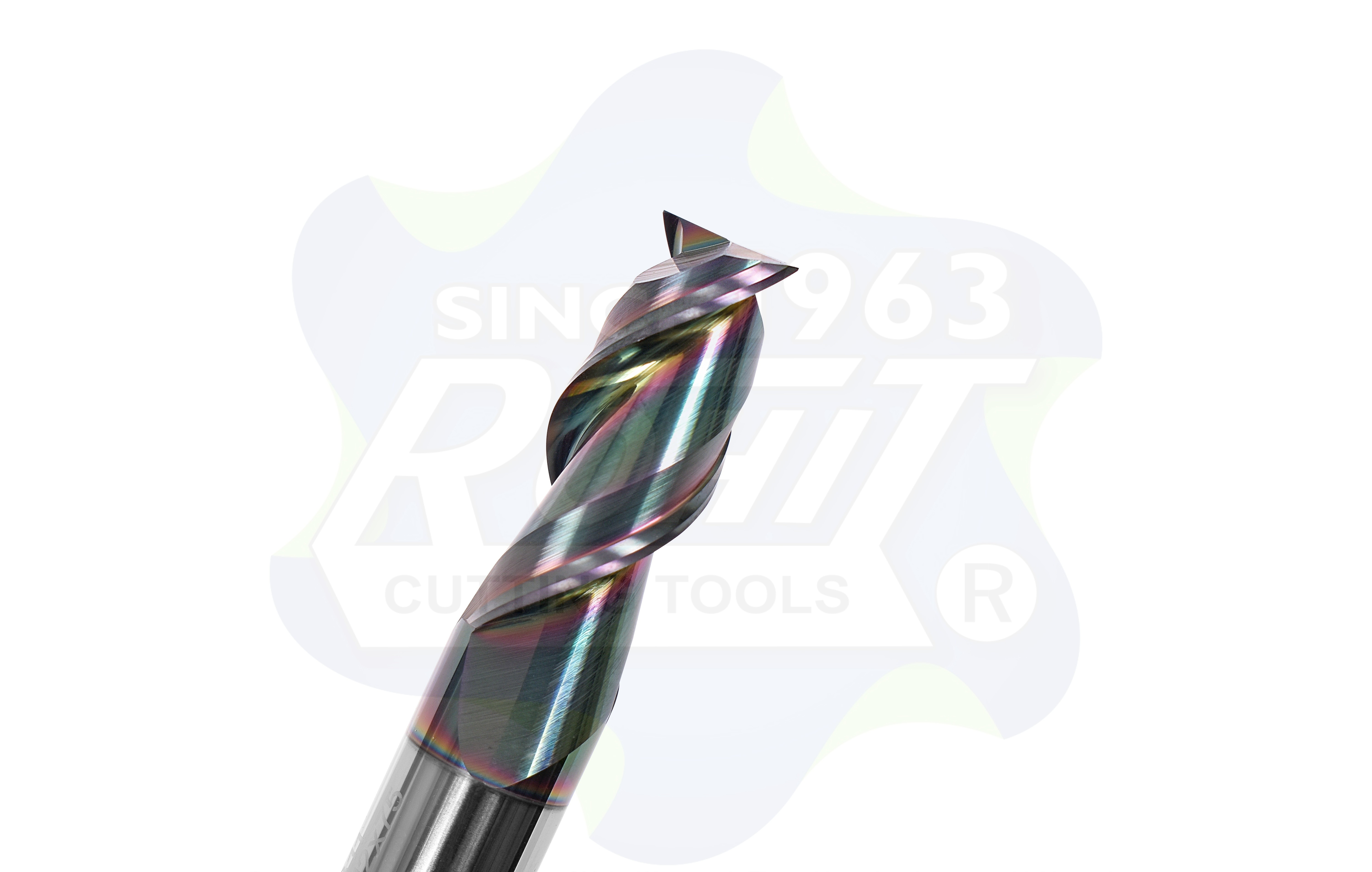

ROHIT 311 Series | 2-Flute High Helix Carbide End Mills for Aluminium | Ø3 – 20 mm
High performance carbide end mills
for aluminium, brass, copper and other non-ferrous machining at elevated cutting parameters
2-flute high helix design
gives maximum chip space and free chip evacuation — the decisive factor in tool life on soft, gummy materials
High helix angle delivers a
shearing cut with lower cutting forces
, preventing built-up edge and chip packing in deep slots and pockets
Best suited to
slotting, deep pocketing and roughing
in aluminium, where the 2-flute chip gullet outperforms higher flute counts
Supplied
uncoated as standard
, with optional
ALU-IRIS or DLC coating
for extended tool life in abrasive and high-silicon aluminium alloys
Also effective on plastics, composites and non-ferrous alloys
Item List
Item
Special Treatment
Flute Dia (mm)
Flute Length (mm)
Shank Dia (mm)
Overall Length (mm)
CR3MHSE00XK8
ALU-IRIS
1
4
3
50
Add to Cart
CR3MHSE00XM4
ALU-IRIS
2
6
4
50
Add to Cart
CR3MHSE00XP7
ALU-IRIS
3
12
3
50
Add to Cart
CR3MHSE00Z70
ALU-IRIS
1.5
4
3
50
Add to Cart
CR3MHSE00Z88
ALU-IRIS
2.5
8
4
50
Add to Cart
CR3MHSE00Z96
ALU-IRIS
4
14
4
50
Add to Cart
CR3MHSE00ZA8
ALU-IRIS
4
25
4
75
Add to Cart
CR3MHSE00ZB6
ALU-IRIS
4
30
4
100
Add to Cart
CR3MHSE00ZC4
ALU-IRIS
5
16
5
50
Add to Cart
CR3MHSE00ZD1
ALU-IRIS
5
25
5
75
Add to Cart
CR3MHSE00ZE9
ALU-IRIS
5
35
5
100
Add to Cart
CR3MHSE00ZF7
ALU-IRIS
6
18
6
50
Add to Cart
CR3MHSE00ZG5
ALU-IRIS
6
30
6
75
Add to Cart
CR3MHSE00ZH3
ALU-IRIS
6
35
6
100
Add to Cart
CR3MHSE00ZJ8
ALU-IRIS
8
20
8
60
Add to Cart
CR3MHSE00ZK6
ALU-IRIS
8
30
8
75
Add to Cart
CR3MHSE00ZL4
ALU-IRIS
8
40
8
100
Add to Cart
CR3MHSE00ZM2
ALU-IRIS
10
30
10
75
Add to Cart
CR3MHSE00ZN9
ALU-IRIS
10
50
10
100
Add to Cart
CR3MHSE00ZP5
ALU-IRIS
12
30
12
75
Add to Cart
CR3MHSE00ZQ3
ALU-IRIS
12
50
12
100
Add to Cart
CR3MHSE00ZR1
ALU-IRIS
14
50
14
100
Add to Cart
CR3MHSE00ZS8
ALU-IRIS
16
50
16
100
Add to Cart
CR3MHSE00ZT6
ALU-IRIS
20
50
20
100
Add to Cart
CR3XHSE00WS0
None
1
4
3
50
Add to Cart
CR3XHSE00WW2
None
1.5
4
3
50
Add to Cart
CR3XHSE00WX9
None
2
6
4
50
Add to Cart
CR3XHSE00WY7
None
2.5
8
4
50
Add to Cart
CR3XHSE00WZ5
None
3
12
3
50
Add to Cart
CR3XHSE00X06
None
4
14
4
50
Add to Cart
CR3XHSE00X14
None
4
25
4
75
Add to Cart
CR3XHSE00X22
None
4
30
4
100
Add to Cart
CR3XHSE00X30
None
5
16
5
50
Add to Cart
CR3XHSE00X48
None
5
25
5
75
Add to Cart
CR3XHSE00X55
None
5
35
5
100
Add to Cart
CR3XHSE00X63
None
6
18
6
50
Add to Cart
CR3XHSE00X71
None
6
30
6
75
Add to Cart
CR3XHSE00X89
None
6
35
6
100
Add to Cart
CR3XHSE00X97
None
8
20
8
60
Add to Cart
CR3XHSE00XA9
None
8
30
8
75
Add to Cart
CR3XHSE00XB7
None
8
40
8
100
Add to Cart
CR3XHSE00XC5
None
10
30
10
75
Add to Cart
CR3XHSE00XD2
None
10
50
10
100
Add to Cart
CR3XHSE00XE0
None
12
30
12
75
Add to Cart
CR3XHSE00XF8
None
12
50
12
100
Add to Cart
CR3XHSE00XG6
None
14
50
14
100
Add to Cart
CR3XHSE00XH4
None
16
50
16
100
Add to Cart
CR3XHSE00XJ9
None
20
50
20
100
Add to Cart
CR3XHSE00Z61
None
20
80
20
150
Add to Cart
CR3XHSE010F6
None
10
75
10
150
Add to Cart
CR3XHSE010H2
None
4
15
6
75
Add to Cart
