Rohit Cutting Tools - Solid Carbide Flat End Mill 3X

Ultra Micro Fine Grain (UMG) Carbide Substrate
Carbide End Mills produced from this substrate are meant for High Performance Milling applications
These Carbide End Mills will improve your productivity manyfolds and reduce your Cost Per Component (CPC) in comparison to 1X Grade of Carbide End Mills.

High performance carbide end mills for stainless steel and alloy steel machining in production runs

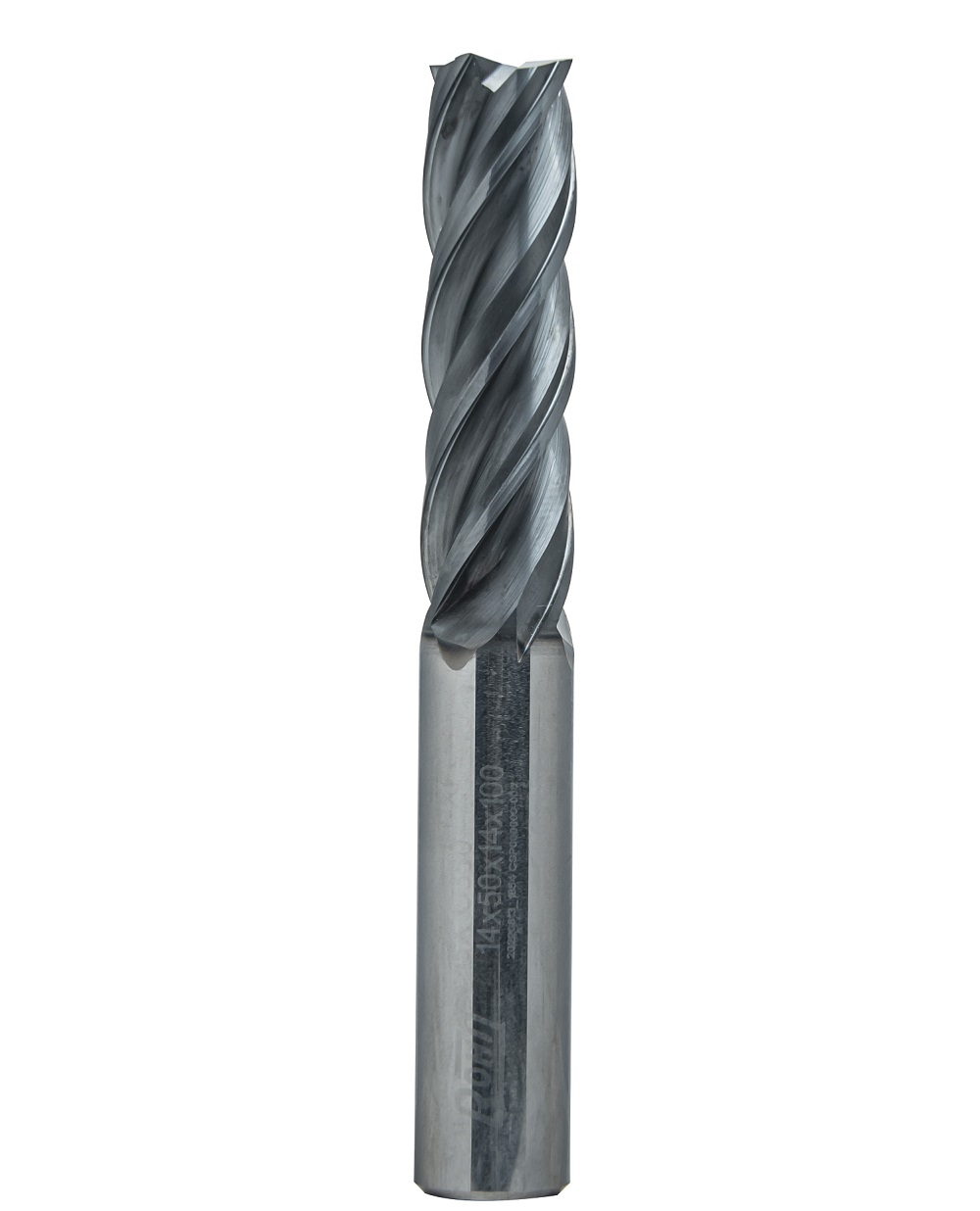

4-flute solid carbide end mills from Ø3 mm to Ø20 mm for slotting, shouldering, profiling and finishing
Delivers 30% higher tool life than the earlier CLOSED 222 and 205 Series carbide end mills
Best suited for alloy steel and stainless steel (SUS); a capable second option for Nickel and Titanium alloys — for super alloys, use the 330 or 333 Series
Ground with a corner radius of 1–2% of diameter (a Ø10 mm end mill carries R0.15–0.20 mm) for added edge strength and chipping resistance
Finished with the newly developed NOVA coating for wear resistance and thermal stability at elevated cutting parameters

High-performance carbide end mills for die-mould and hard milling at elevated cutting parameters
Solid carbide flat end mills for milling up to 60 HRc hardened die steel and tool steel like D2, D3, H13, P20
Full range of end mills from Ø1 mm to Ø20 mm in regular, long and extra-long reach
4-flute design for higher feed rates and superior finish in profiling, shouldering and finishing
About 20% higher productivity and tool life than 205 Series carbide end mills
Ultra-fine grain carbide with NOVA coating; for above 60 HRc, move up to the 401 Series

High Performance Carbide End Mills for Die-Mold Application & other harder milling
2-Flute Carbide End Mills comes with newly developed NOVA coating
Carbide Cutting Tools for milling up to 60-HRc hardened die steel & tool steel like D2, D3, H13 etc

High performance carbide end mills for aluminium, brass, copper and other non-ferrous machining at elevated cutting parameters
2-flute high helix design gives maximum chip space and free chip evacuation — the decisive factor in tool life on soft, gummy materials
High helix angle delivers a shearing cut with lower cutting forces, preventing built-up edge and chip packing in deep slots and pockets
Best suited to slotting, deep pocketing and roughing in aluminium, where the 2-flute chip gullet outperforms higher flute counts
Supplied uncoated as standard, with optional ALU-IRIS or DLC coating for extended tool life in abrasive and high-silicon aluminium alloys
Also effective on plastics, composites and non-ferrous alloys

High performance 3-flute carbide end mills for aluminium, brass, copper and non-ferrous machining at elevated cutting parameters
3-flute high helix geometry allows higher feed rates and a better surface finish than 2-flute while retaining adequate chip room
The preferred choice for profiling, shouldering, finishing and high speed machining on aluminium moulds, dies and production components
High helix angle produces a smooth shearing action with low cutting forces, giving a bright finish and stable cutting at high RPM
Supplied uncoated as standard, with optional ALU-IRIS or DLC coating for extended tool life in abrasive and high-silicon aluminium alloys
Ideal for high-RPM spindles and dynamic toolpaths in aerospace, automotive and CNC router applications

Micro end mills in solid carbide for die-mold detailing, micro-cavity milling and precision component machining
Carbide end mills from Ø0.1 mm to Ø0.9 mm, ground from ultra-fine grain carbide for maximum edge strength
Mills hardened die steel and tool steel up to 60 HRc — D2, D3, H13, P20, SKD11 — in the hardened condition
2-flute geometry gives free chip evacuation in narrow slots, ribs and micro-pockets
Reduced neck with tight concentricity control for deep, close-wall access and longer micro tool life
Coated with the newly developed NOVA coating for wear and thermal resistance without rounding the edge
