307-2-Flute-HP-Solid Carbide Taper Neck Ball Nose upto 60HRC machining -Metric

Description

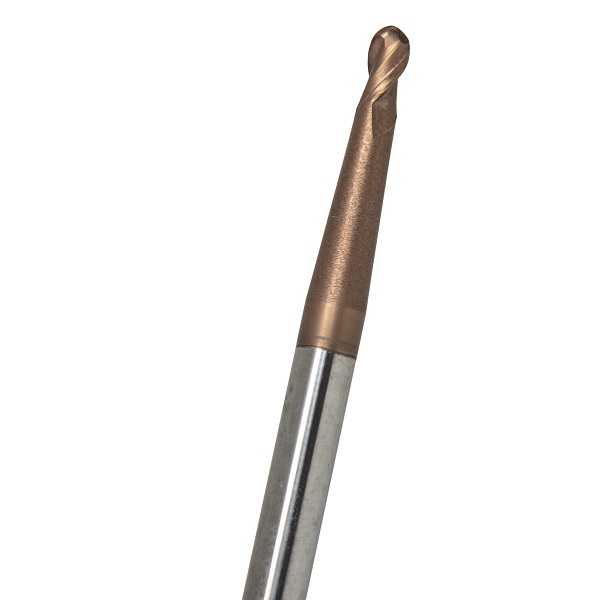

ROHIT 307 Series | Taper Neck Carbide Ball Nose End Mills | Ø2–12 mm

  • High performance taper neck carbide ball nose end mills for die-mold work where a straight shank cannot reach
  • 2-flute carbide ball nose from Ø2 mm to Ø12 mm for 3D contouring, copy milling and deep cavity finishing
  • Tapered neck geometry gives greater reach with higher rigidity than a straight-neck tool of the same length — less deflection, better form accuracy
  • Best suited for milling hardened die steel and tool steel up to 60 HRc — D2, D3, H13, P20 and equivalents
  • Finished with the newly developed NOVA coating for wear resistance and thermal stability at elevated cutting parameters

Item List

Item Flute Dia (mm) Flute Length (mm) Neck Dia (mm) Reach Length (mm) Shank Dia (mm) Overall Length (mm) Taper-Neck Angle
CR3AHBE00G37 3 6 5.6 32 6 75 3

CR3AHBE00G45 4 8 6 28 6 75 3

CR3AHBE00G52 6 12 8 53 8 100 1.5

CR3AHBE00G60 6 12 8 34 8 80 3

CR3AHBE00J42 2 4 2.9 23 6 60 1.5

CR3AHBE00J59 2 4 5 23 6 60 5

CR3AHBE00J67 2 4 5.7 41 6 80 3

CR3AHBE00J75 3 6 5.3 52 6 90 1.5

CR3AHBE00J83 4 8 6 49 6 90 1.5

CR3AHBE00J91 5 10 8 41 8 80 3

CR3AHBE00JA3 5 10 7 51 8 100 1.5

CR3AHBE00JB1 8 14 10 36 10 80 3

CR3AHBE00JC9 8 14 10 55 10 100 1.5

CR3AHBE00JD6 10 18 12 40 12 80 3

CR3AHBE00JE4 10 18 12 59 12 100 1.5

CR3AHBE00JF2 12 22 16 63 16 110 3

CR3AHBE00JG0 12 22 15 83 16 150 1.5
