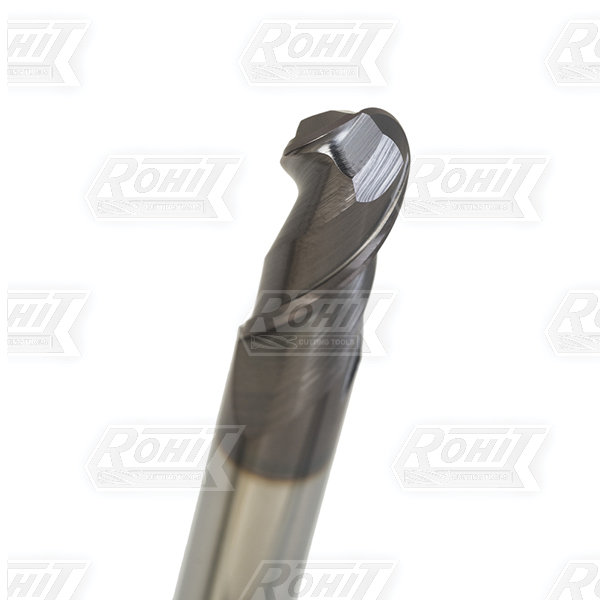

204-2-Flute 1X Solid Carbide Ball Nose-Metric
Description
- Economical Carbide Ball Nose End Mills series for general copy milling application
- Good for general milling applications
- 2-Flute Carbide Ball Nose End Mills comes with TiALN Coating
- Solid Carbide Ball Noses good for milling up to 45HRc hardened die steel, tool steel
Item List
| Item | Flute Dia (mm) | Flute Length (mm) | Shank Dia (mm) | Overall Length (mm) | ||
|---|---|---|---|---|---|---|
| CR11GBE00537 | 3 | 15 | 3 | 50 |
|
|
| CR11GBE00545 | 3 | 20 | 3 | 75 |
|
|
| CR11GBE00552 | 3 | 25 | 3 | 100 |
|
|
| CR11GBE00560 | 4 | 14 | 4 | 50 |
|
|
| CR11GBE00578 | 4 | 20 | 4 | 75 |
|
|
| CR11GBE00586 | 4 | 25 | 4 | 100 |
|
|
| CR11GBE00594 | 5 | 16 | 5 | 50 |
|
|
| CR11GBE005A6 | 5 | 20 | 5 | 75 |
|
|
| CR11GBE005B4 | 5 | 25 | 5 | 100 |
|
|
| CR11GBE005C2 | 6 | 16 | 6 | 50 |
|
|
| CR11GBE005D9 | 6 | 25 | 6 | 75 |
|
|
| CR11GBE005E7 | 6 | 30 | 6 | 100 |
|
|
| CR11GBE005J6 | 8 | 20 | 8 | 60 |
|
|
| CR11GBE005K4 | 8 | 25 | 8 | 75 |
|
|
| CR11GBE005L2 | 8 | 30 | 8 | 100 |
|
|
| CR11GBE005P3 | 10 | 25 | 10 | 75 |
|
|
| CR11GBE005Q1 | 10 | 40 | 10 | 100 |
|
|
| CR11GBE005S6 | 12 | 25 | 12 | 75 |
|
|
| CR11GBE005T4 | 12 | 40 | 12 | 100 |
|
