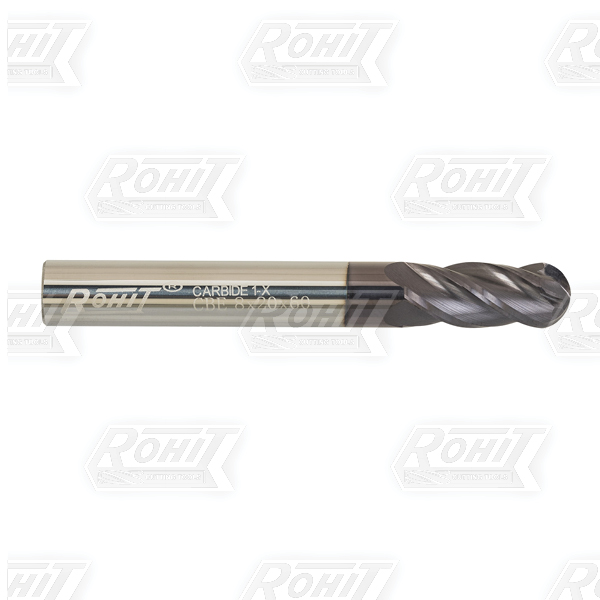

202-4-Flute 1X Solid Carbide Ball Nose-Metric

Economical Carbide Ball Nose End Mills series for general copy milling application
Good for general milling applications
4-Flute Carbide Ball Nose End Mills comes with TiALN Coating
Solid Carbide Ball Noses good for milling up to 45HRc hardened die steel, tool steel

Item	Flute Dia (mm)	Flute Length (mm)	Shank Dia (mm)	Overall Length (mm)
CR11GBE007H9	3	15	3	50
CR11GBE007J4	3	20	3	75
CR11GBE007K2	3	25	3	100
CR11GBE007L0	4	14	4	50
CR11GBE007M8	4	20	4	75
CR11GBE007N5	4	25	4	100
CR11GBE007P1	5	16	5	50
CR11GBE007Q9	5	20	5	75
CR11GBE007R7	5	25	5	100
CR11GBE007S4	6	16	6	50
CR11GBE007T2	6	25	6	75
CR11GBE007U0	6	30	6	100
CR11GBE007V8	6	50	6	150
CR11GBE007W6	7	20	7	60
CR11GBE007X3	8	20	8	60
CR11GBE007Y1	8	25	8	75
CR11GBE007Z9	8	30	8	100
CR11GBE00800	8	50	8	150
CR11GBE00818	9	25	9	75
CR11GBE00826	10	25	10	75
CR11GBE00834	10	40	10	100
CR11GBE00842	10	60	10	150
CR11GBE00859	12	25	12	75
CR11GBE00867	12	40	12	100
CR11GBE00875	12	60	12	150
CR11GBE00883	12	60	12	200
CR11GBE00891	14	40	14	100
CR11GBE008A3	14	60	14	150
CR11GBE008B1	14	60	14	200
CR11GBE008C9	16	40	16	100
CR11GBE008D6	16	60	16	150
CR11GBE008E4	16	60	16	200
CR11GBE008F2	18	40	18	100
CR11GBE008G0	18	60	18	150
CR11GBE008H8	18	60	18	200
CR11GBE008J3	20	40	20	100
CR11GBE008K1	20	60	20	150
CR11GBE008L9	20	60	20	200
CR11GBE008M7	25	40	25	100
CR11GBE008N4	25	60	25	150
CR11GBE008P0	25	60	25	200
CR11GBE00C17	14	30	14	75
CR11GBE00C74	16	30	16	75
CR11GBE00FU5	10	60	10	200
