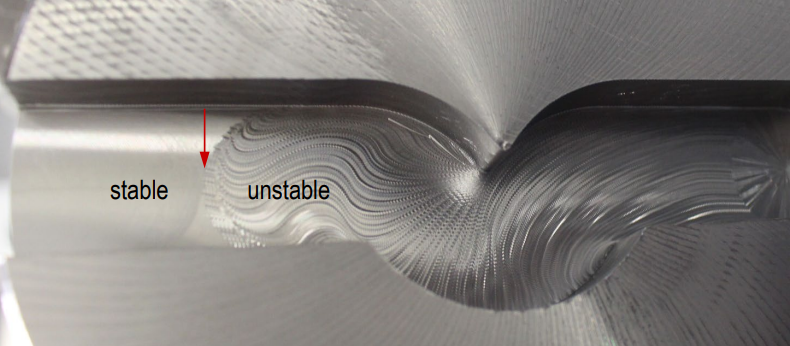

Milling is one of the most common processes in the machining industry, however machinists around the world face Chattering as main headache
Milling is one of the most common processes in the machining industry, involving the removal of material from a workpiece using rotary cutters. While highly effective, one of the most persistent issues machinists face is chatter—a form of vibration that can lead to poor surface finish, reduced tool life, and inefficiencies in the milling process. Chatter can often be challenging to identify and eliminate, especially in high-speed or high-volume machining operations. Thankfully, with the right strategies, you can significantly reduce or even eliminate chatter, improving both your machining quality and productivity.
In this blog, we’ll cover the top 10 hacks for reducing chatter in milling, providing practical solutions that will help you achieve smoother operations and better results.
1. Optimize Cutting Speeds and Feed Rates
One of the most effective ways to reduce chatter is by adjusting your cutting speeds and feed rates. Chatter often occurs when there is a mismatch between the cutting speed, feed rate, and the natural frequencies of the tool or the workpiece.
Hack:
- Start by lowering your cutting speed and then gradually increasing it until you find a sweet spot where chatter diminishes.
- Use conservative feed rates initially, then adjust upwards while observing tool behavior.
- Utilize manufacturer-recommended speeds and feeds as a baseline and experiment in small increments for fine-tuning.
By tweaking these two parameters, you can often avoid excitation of the machine’s natural frequencies, thus reducing or eliminating chatter.

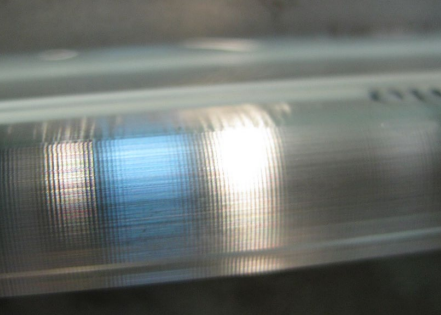

Chattering in profile milling of Aluminum Part, use ROHIT 213 Series Aluminum Specific End Mills
2. Choose the Right Tool Geometry
The geometry of your milling tool plays a critical role in preventing chatter. A tool that is poorly suited to the material or the operation at hand can lead to increased vibration and instability.
Hack:
- Use a tool with a shorter overhang to increase rigidity.
- Opt for end mills with variable helix angles to disrupt vibration patterns : You can opt for ROHIT Variable Helix End Mills 4flute 330 Series Or 5-flute 333 Series whenever you are facing Chattering issues.
- Choose tools with larger core diameters or thicker shanks for increased stiffness.
- Consider tools with sharper edges, which can reduce cutting forces and improve chip formation, leading to less vibration.
- Use Material Specific end mills i.e. End Mills for Steel will not give results in Aluminum and vice versa
Optimizing tool geometry is a relatively simple adjustment but can have a major impact on chatter reduction.
3. Secure Work-holding and Fixturing
The stability of the workpiece is paramount when it comes to reducing chatter. Even a slight movement or instability in the work-holding can exacerbate vibration and chatter issues.
Hack:
- Use high-quality work-holding solutions such as vises, clamps, and fixtures that minimize movement.
- Double-check that your workpiece is seated securely and that there’s no opportunity for it to shift during the operation.
- For larger parts, consider custom fixturing that is specifically designed to reduce vibration.
- Avoid long overhangs or excessive part extensions beyond the fixture whenever possible.
Ensuring your workpiece is securely held can help reduce vibrations and provide a more stable cutting environment.
4. Increase Tool Rigidity
Tool deflection is a significant cause of chatter. Longer tools or tools with small diameters are more prone to bending under cutting forces, leading to vibrations and chatter.
Hack:
- Use the shortest tool possible for the job, reducing the length-to-diameter ratio.
- Opt for tools with larger diameters or those designed specifically for higher rigidity.
- Reduce overhang where possible by using longer tool holders only when necessary.
- Consider using balanced tool holders, which can help in reducing vibration when running at higher speeds.
By increasing tool rigidity, you reduce the likelihood of tool deflection, one of the leading causes of chatter in milling.
5. Utilize Dynamic Milling Strategies
Traditional milling techniques often engage the tool more aggressively, which can increase the chances of chatter. Dynamic milling, on the other hand, is a more modern approach designed to reduce cutting forces and distribute them more evenly.
Hack:
- Implement high-efficiency milling (HEM) techniques to control radial engagement.
- Use trochoidal milling paths to reduce tool wear and optimize cutting forces.
- Employ constant cutter engagement strategies that maintain consistent cutting pressure and reduce vibration potential.
Dynamic milling techniques are especially beneficial in materials that are prone to chatter, such as titanium or hardened steels, and can greatly improve stability.
6. Adjust Spindle Speeds with Harmonic Matching
Chatter often results from the resonance between the cutting tool, the workpiece, and the machine. Adjusting the spindle speed can help shift away from these harmonic frequencies.
Hack:
- Utilize a technique called “harmonic matching,” where you deliberately increase or decrease the spindle speed to shift the frequency of cutting vibrations out of the machine’s resonance range.
- Start by identifying a speed range where chatter is minimal, then fine-tune spindle speed in small increments until you find an optimal range.
Some modern CNC machines even feature built-in harmonic matching capabilities, where they automatically adjust the spindle speed to avoid chatter.
7. Use Damping Solutions
Damping is a process of absorbing or dissipating energy to reduce vibrations, and it can be highly effective in milling. While some damping occurs naturally in the machine structure, it can be enhanced with additional solutions.
Hack:
- Add damping attachments or damped toolholders, which are designed to reduce tool vibrations.
- Use heavy-duty or specially designed vibration-damping machine tables that are better at absorbing cutting-induced vibrations.
- Consider incorporating viscoelastic materials between the machine table and the workpiece to provide additional damping.
By increasing the damping capacity of your system, you can significantly reduce chatter and achieve better surface finishes.
8. Balance Your Tools and Tool Holders
An imbalanced tool or tool holder can cause severe vibrations, especially when operating at high spindle speeds. Even small imbalances can magnify vibrations, leading to chatter.
Hack:
- Always balance tools and tool holders, especially for high-speed milling operations.
- Check for any debris or foreign objects in the tool holder that may cause imbalance.
- Use precision collet chucks and balanced tool holders for high-speed machining applications.
Properly balancing your tools and holders ensures that no unnecessary vibrations are introduced during the machining process.
9. Choose the Right Coolant Strategy
Coolant is not only important for controlling temperature but also for maintaining a stable cutting environment. Inadequate cooling can result in uneven tool wear, which contributes to chatter.
Hack:
- Use high-pressure coolant systems that can flush chips out of the cutting zone more effectively and reduce friction.
- Employ coolant delivery systems that directly target the cutting area, ensuring consistent cooling and lubrication.
- Consider using cutting oils instead of water-based coolants for materials that benefit from better lubrication, which can help reduce vibration-causing friction.
Optimizing your coolant strategy can help maintain tool sharpness, improve surface finishes, and reduce the risk of chatter.
10. Maintain Machine and Tool Condition
Finally, the overall condition of your machine and tools plays a critical role in chatter reduction. Worn-out machines or dull tools are far more prone to generating vibrations.
Hack:
- Perform regular maintenance checks on your machine, including lubrication, alignment, and tightening of all components.
- Inspect tools for wear or damage before each operation, as dull tools can lead to increased cutting forces and chatter.
- Calibrate your machine regularly to ensure accuracy and stability during milling.
Ensuring your machine and tools are in top condition is one of the simplest yet most effective ways to reduce chatter and improve machining quality.
Conclusion
Chatter in milling is an issue that can significantly affect the quality and efficiency of your operations. By applying these top 10 hacks—adjusting cutting speeds and feeds, choosing the right tool geometry, securing work-holding, increasing tool rigidity, employing dynamic milling, adjusting spindle speeds, using damping solutions, balancing tools, optimizing coolant strategies, and maintaining machine and tool condition—you can significantly reduce or eliminate chatter in your milling processes.
Each of these hacks addresses different aspects of the milling process, from tool selection to machining strategies, and when implemented together, they can dramatically improve your results. Whether you’re working on high-volume production runs or precision parts, reducing chatter will lead to smoother surfaces, longer tool life, and greater overall efficiency.
Key Takeaways:
- Chatter can be reduced by optimizing the interaction between the cutting tool, workpiece, and machine.
- Dynamic milling strategies and adjusting spindle speeds to avoid harmonic resonance can greatly reduce chatter.
- Maintaining machine condition and securing work-holding are foundational practices for preventing chatter.
By incorporating these strategies into your milling routine, you’ll achieve more stable and efficient machining processes, saving time and reducing costly tool wear or part rework.
